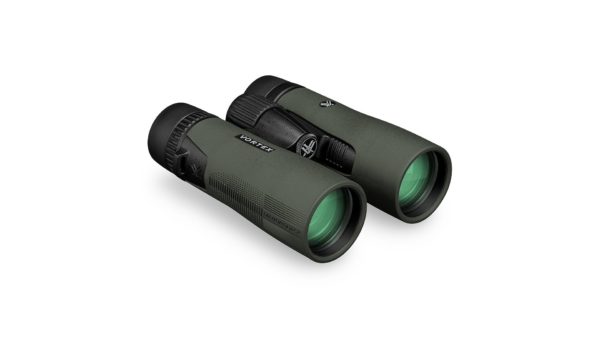

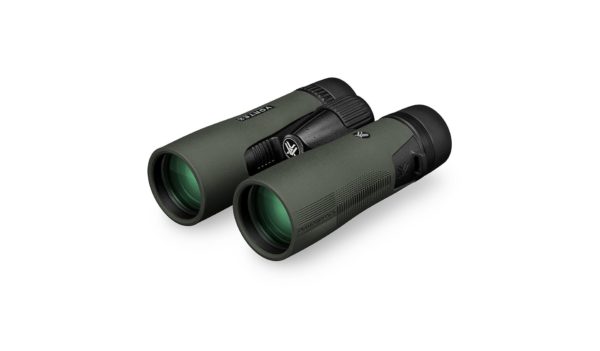

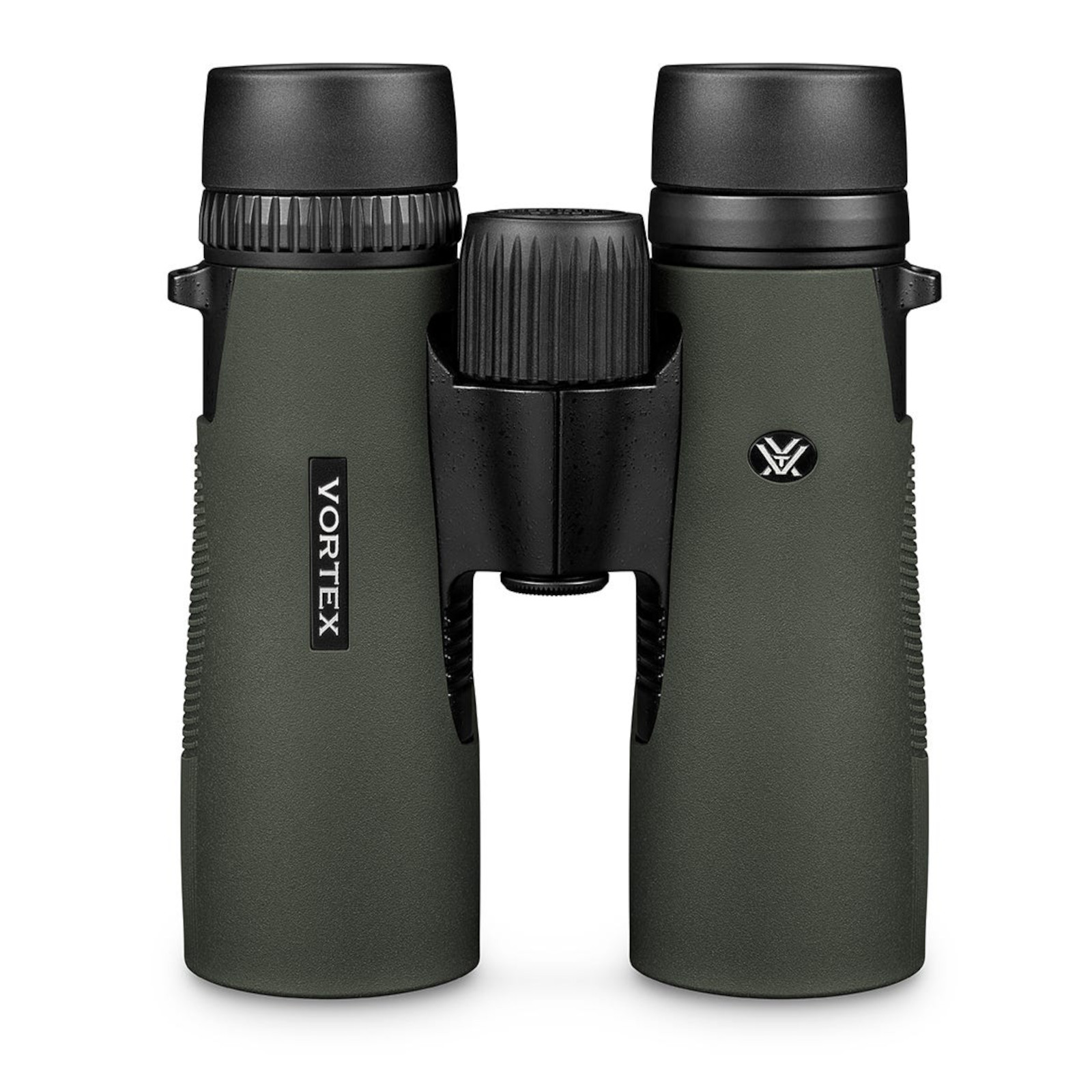

The Diamondback HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPak TM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck straps.
Features:
Optical Features:
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
Fully Multi-Coated | Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
Dielectric Coating | Multi-layer prism coatings provide bright, clear, color-accurate images. |
ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Phase Correction | Coating on roof prism models enhances resolution and contrast. |
Construction Features:
Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
Shockproof | Rugged construction withstands recoil and impact. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Roof Prism | Valued for greater durability and a more compact size. |
Magnesium Chassis | Decreases weight and increases strength. |
Convenience Features:
Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
Center Focus Wheel | Adjusts the focus of both binocular barrels at the same time. |
Diopter | Adjusts for differences in a user's eyes. Located on right eyepiece. |
Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
Specifications:
Magnification | 10x |
Objective Lens Diameter | 42 mm |
Eye Relief | 15 mm |
Exit Pupil | 4.2 mm |
Linear Field of View | 330 feet/1000 yards |
Angular Field of View | 6.3 degrees |
Close Focus | 5 feet |
Interpupillary Distance | 55-73 mm |
Height | 5.7 inches |
Width | 5.1 inches |
Weight | 21.3 oz |
Product Manual (PDF) | Download |
Parts Diagram (PDF) | Download |
Included In the Box:
- GlassPak binocular case
- GlassPak case harness
- Comfort neck strap
- Tethered objective lens covers
- Rainguard Eyepiece Cover
- Lens Cloth
VORTEX DIAMONDBACK HD BINOCULARS:
The Diamondback HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPakTM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck straps.
https://www.youtube.com/watch v=UL-LPS3XVf0
DIAMONDBACK HD 10 X 42 BINOCULAR:
https://www.youtube.com/watch v=cx5E7DSuU0g
